Window Wall
The RWW 7000-series is a 5-1/8″ (130mm) deep, unitized thermally broken, fully captured window system, allowing for depth articulation of the exterior expressed aluminum frame components. This system features single sized polyamide struts throughout the system, starting at a baseline width of 0.945″ (24mm), for excellent thermal performance. Strut size can be incrementally increased to enhance system performance. The strut system also allows for different finishes to be applied to exterior and interior component. |
FRAME DEPTH: |
5-1/8" (130mm |
FRAME SIGHTLINE: |
4-5/8" (118mm) |
BASELINE GLASS: |
Designed for 1" (24mm) insulating glass, Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance |
MAX. SIZE: |
48" x 108" |
DESIGN LOAD: |
+50/-50 psf |
WATER PERFORMANCE: |
15 psf |
U-VALUE: |
0,32 |
The RWW 8000-series is a 4-sided structurally glazed unitized window system, with a 4″ (102mm) structural mullion depth. This system provides both optimized performance and an economical value for low to mid-rise buildings and punched openings. This system implements engineering principles for air/water management matching the deeper 9000/9500/12000 series systems. |
FRAME DEPTH: |
4" (102mm) structural frame depth |
FRAME SIGHTLINE: |
2-1/2" (63.5mm) |
BASELINE GLASS: |
Designed for 1" (24mm) insulating glass. Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance |
MAX. SIZE: |
48" x 108" |
DESIGN LOAD: |
+40/-40 psf |
WATER PERFORMANCE: |
15 psf |
U-VALUE: |
0,35 |

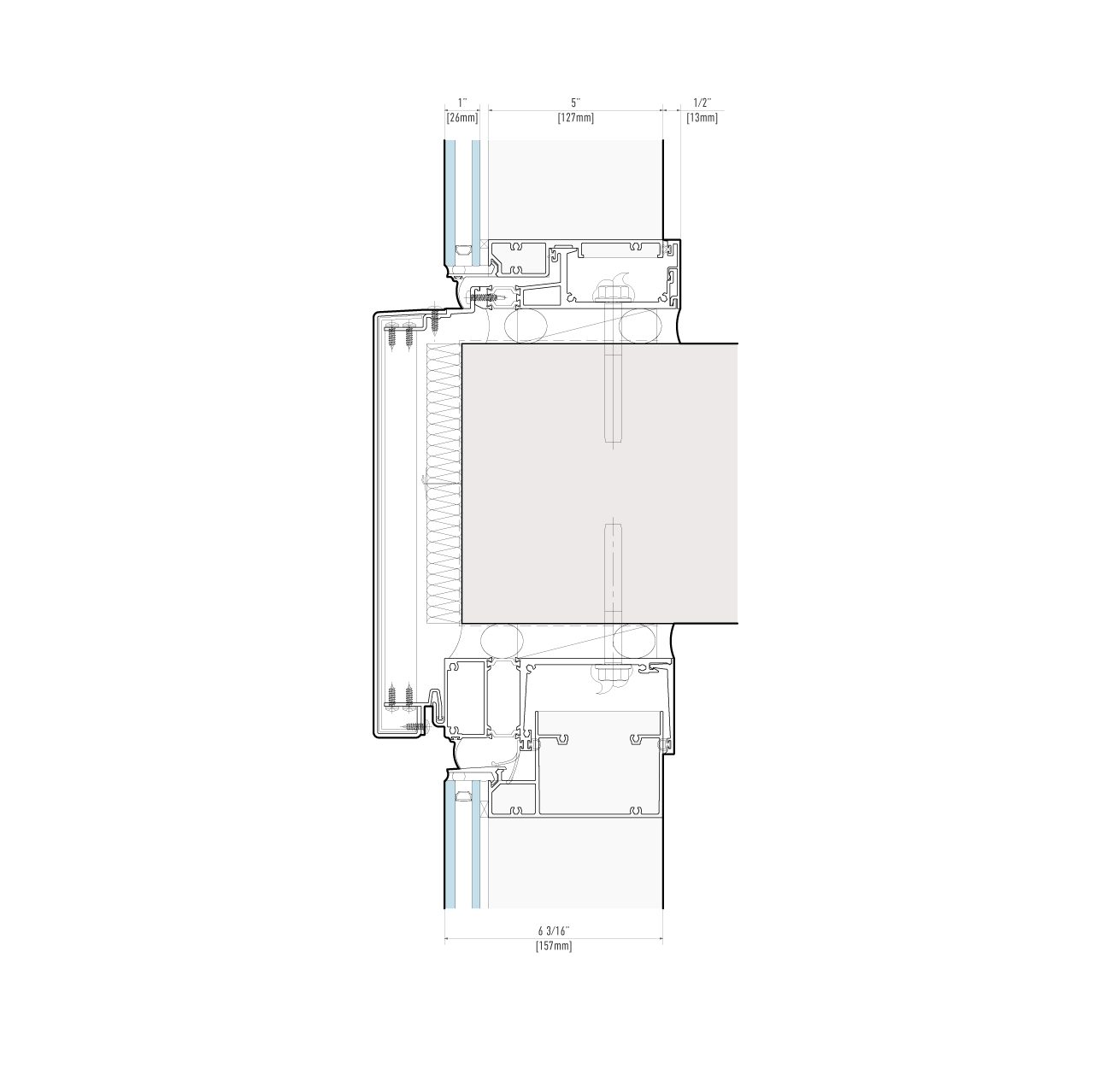

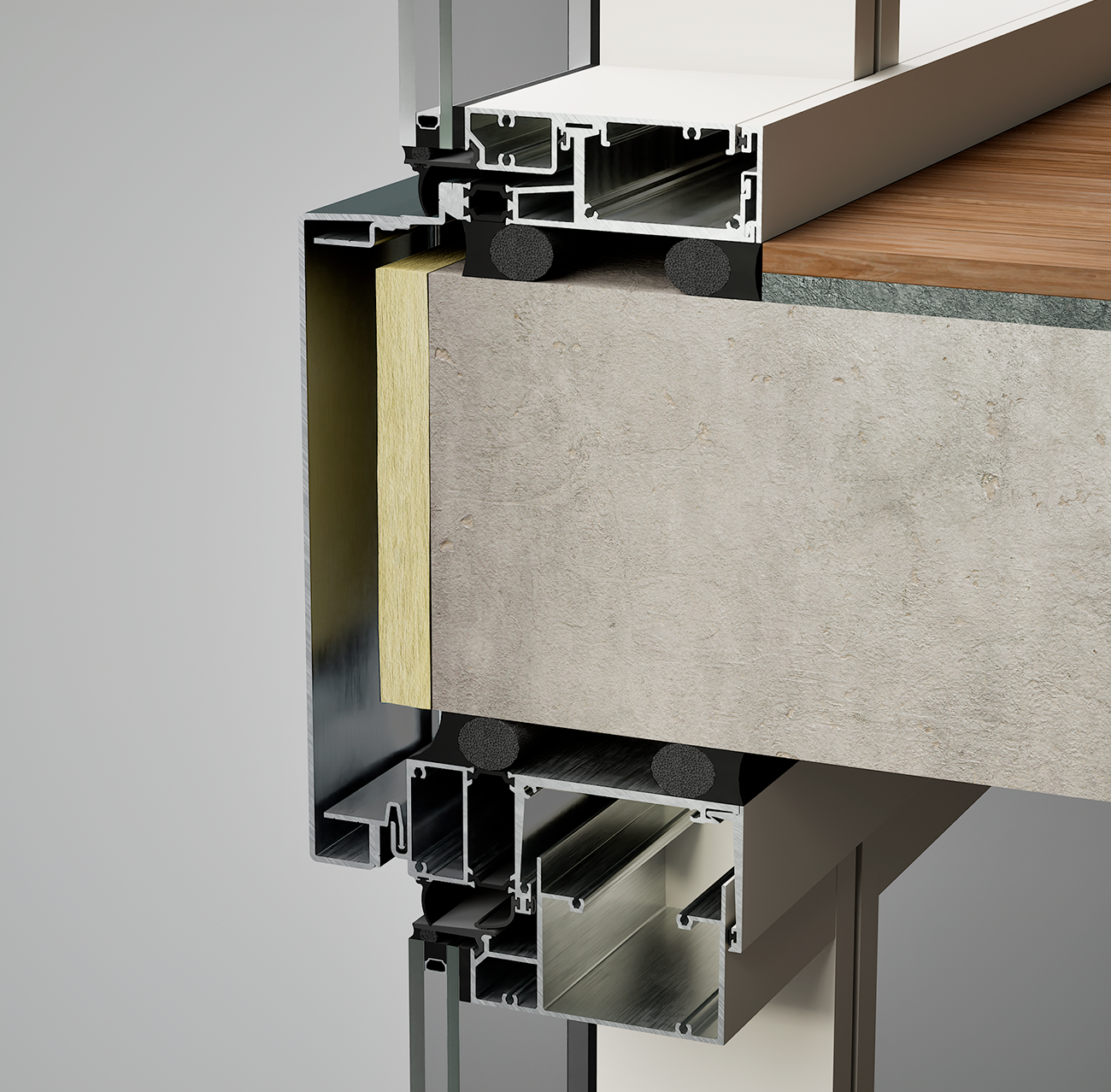

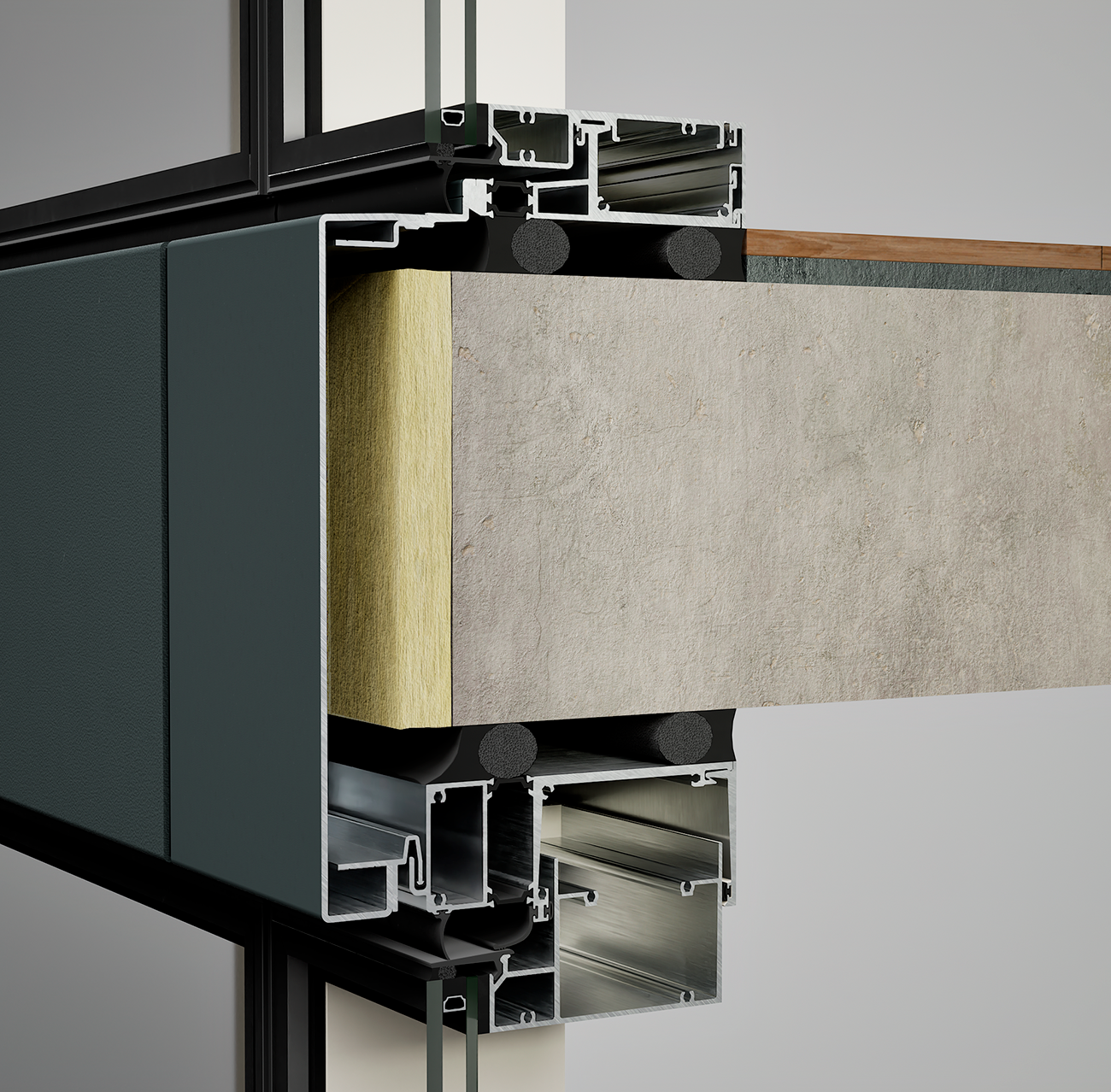

The RWW 9000-series is a 4-sided structurally glazed unitized window system, with a 5″ (127mm) structural mullion depth. This system migrates seamlessly from exterior facade to interior set balconies as a single system. Offers a large range of custom angled inside/outside corner conditions and segmented wall options. |
FRAME DEPTH: |
5" (127mm) structural frame depth |
FRAME SIGHTLINE: |
2-1/2" (63.5mm) / 3" (76mm) |
BASELINE GLASS: |
Designed for 1" (24mm) insulating glass. Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance |
MAX. SIZE: |
60" x 108" (SL 2.5"); 60" x 128" (SL 3") |
DESIGN LOAD: |
+50/-50 psf |
WATER PERFORMANCE: |
15 psf |
U-VALUE: |
0,33 |
Taylor Street Apartments |

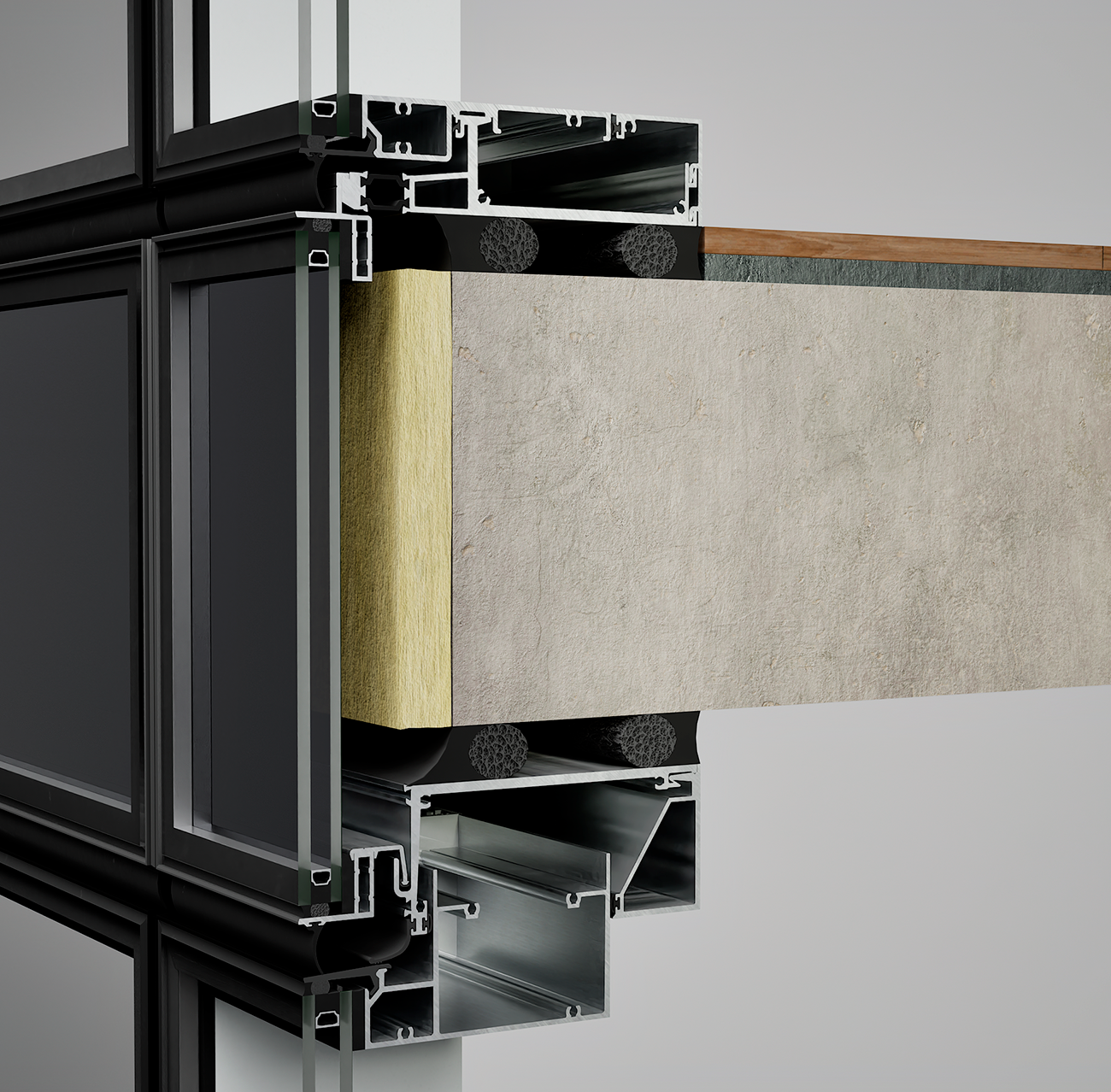

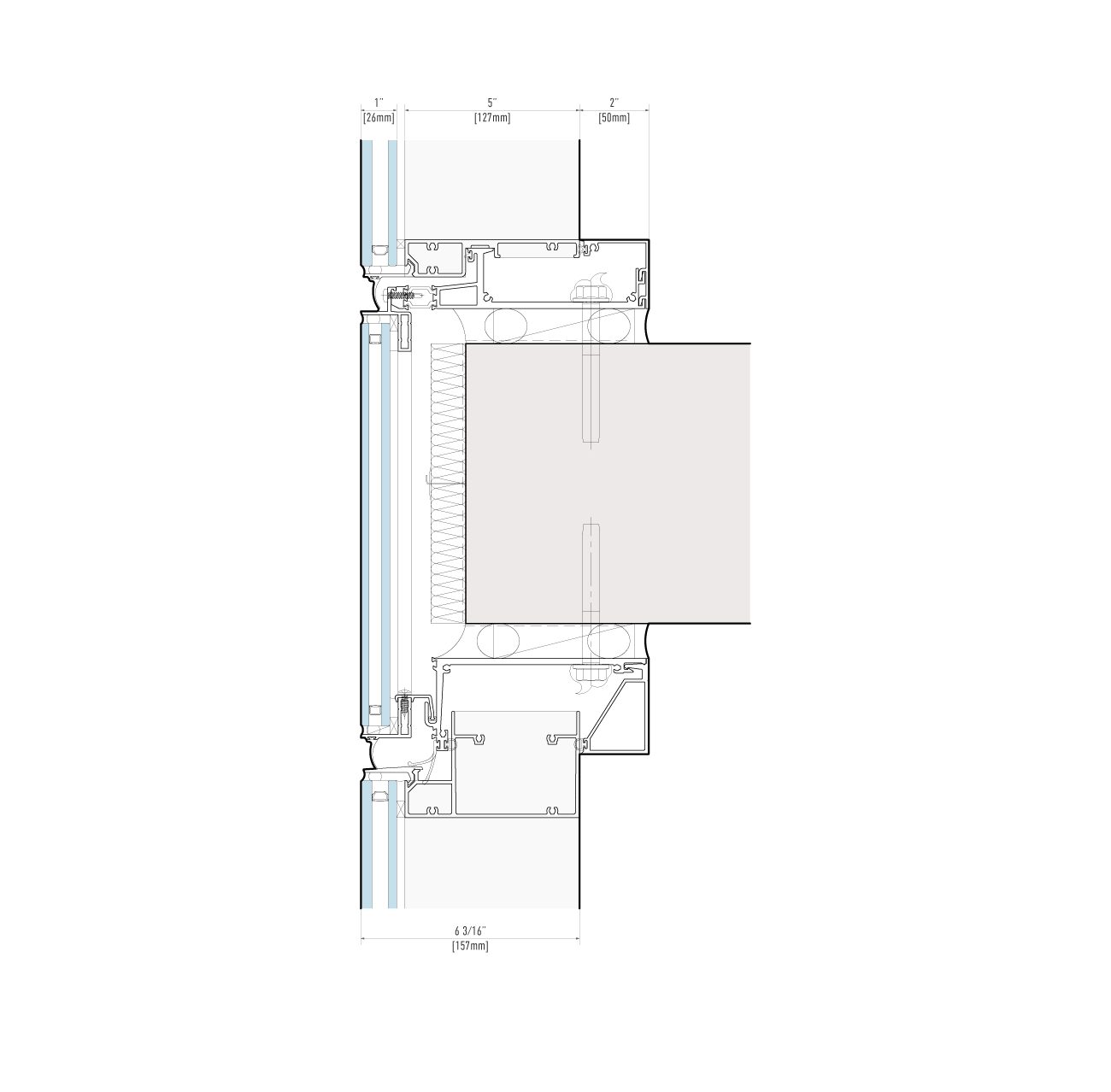

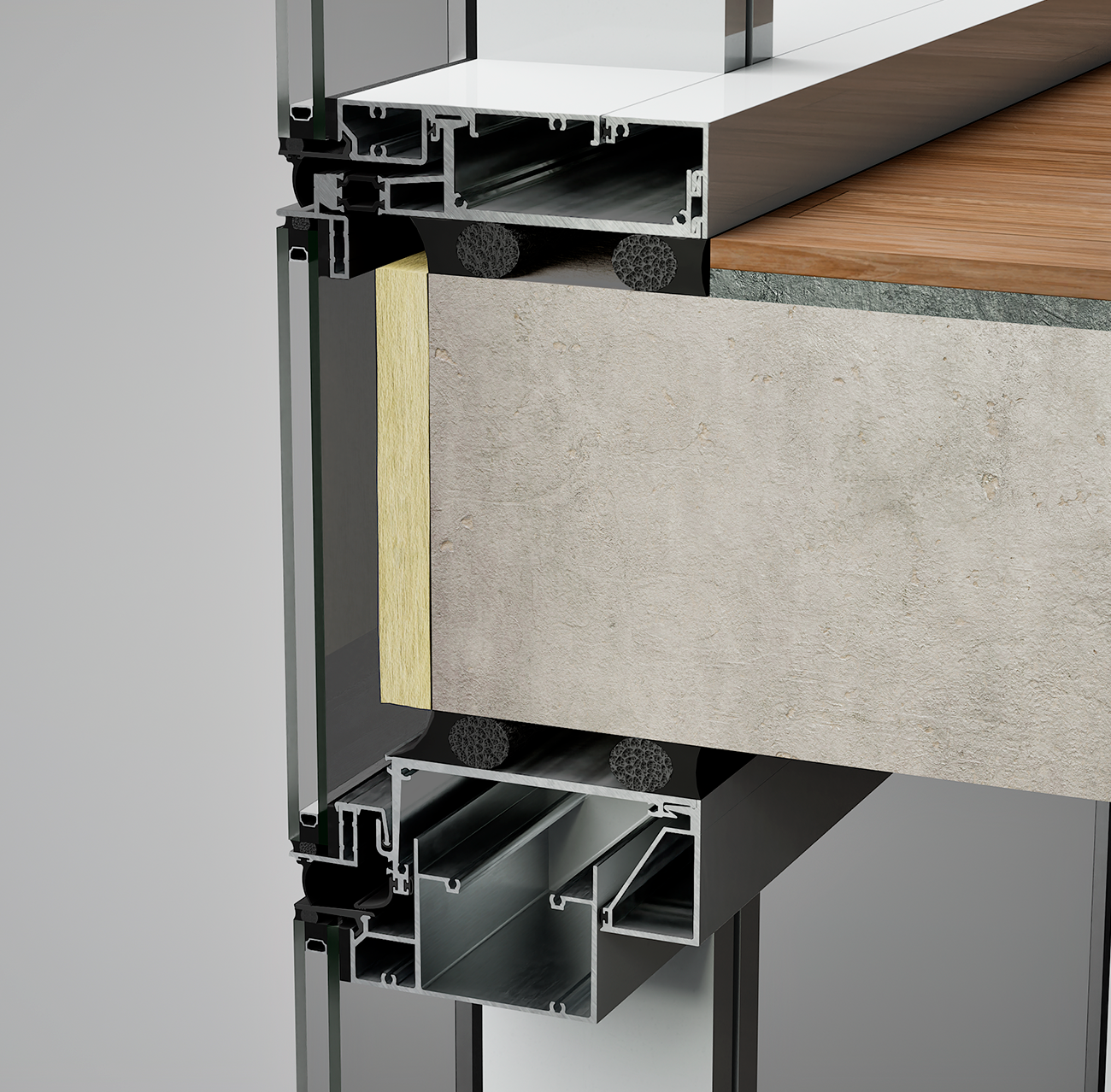

The RWW 9500-series is a 4-sided structurally glazed unitized window system, with a 5″ (127mm) structural mullion depth. This patented design (US #9,663,945) integrates a glass slab cover detail that gives this window system the appearance of a structurally glazed curtain wall facade. Offers a multitude of infill options for structurally glazed application, including but not limited to; insulated glass, metal, porcelain tile, and GFRC. |
FRAME DEPTH: |
5" (127mm) structural frame depth |
FRAME SIGHTLINE: |
2-1/2" (63.5mm) /3" (76mm) |
BASELINE GLASS: |
Designed for 1" (24mm) insulating glass. Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance |
MAX. SIZE: |
60" x 108" (SL 2.5"); 60" x 128" (SL 3") |
DESIGN LOAD: |
+50/-50 psf |
WATER PERFORMANCE: |
15 psf |
U-VALUE: |
0,32 |
1 S. Halsted |
448 N. LaSalle |
950 Market |

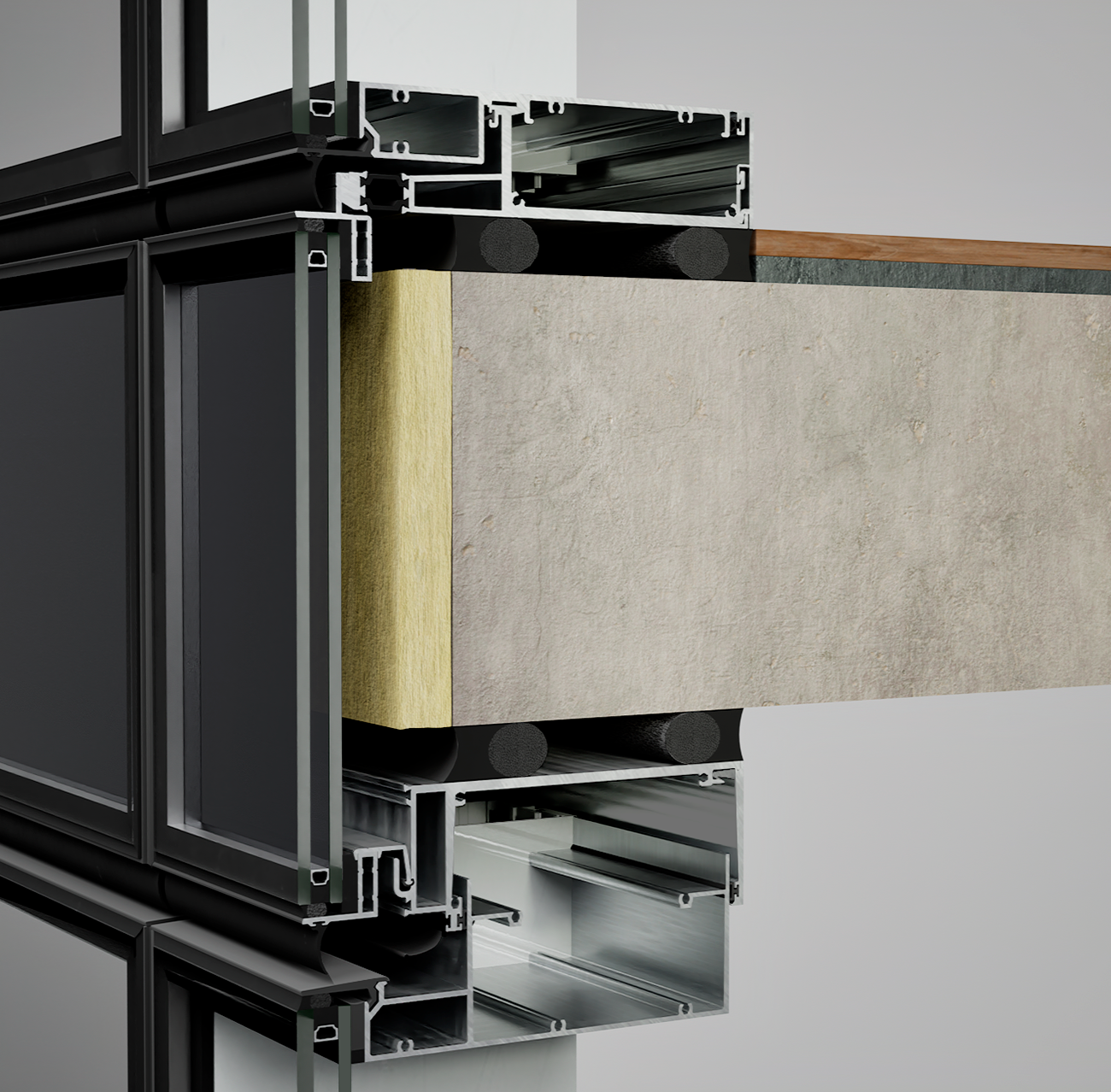

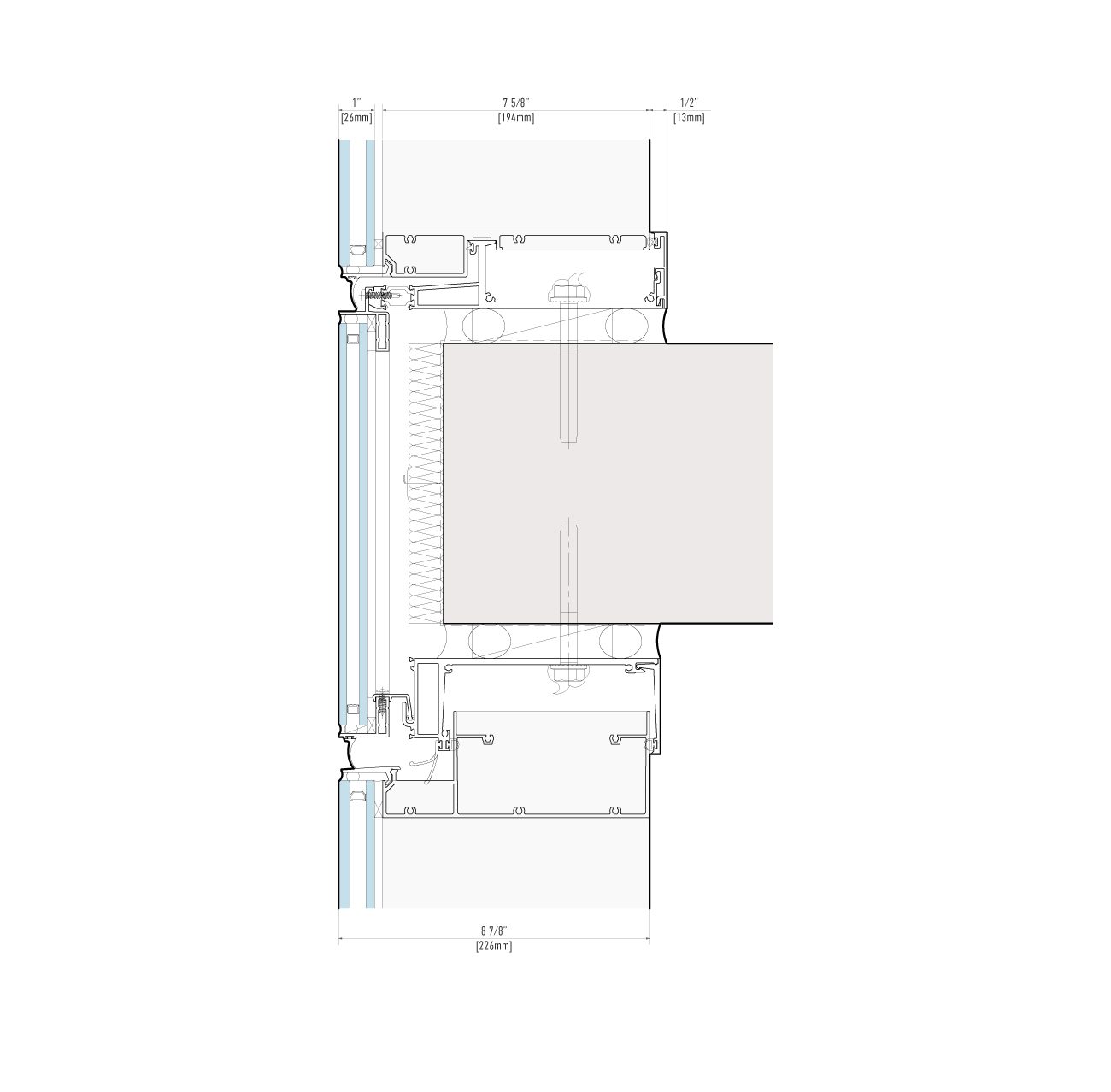

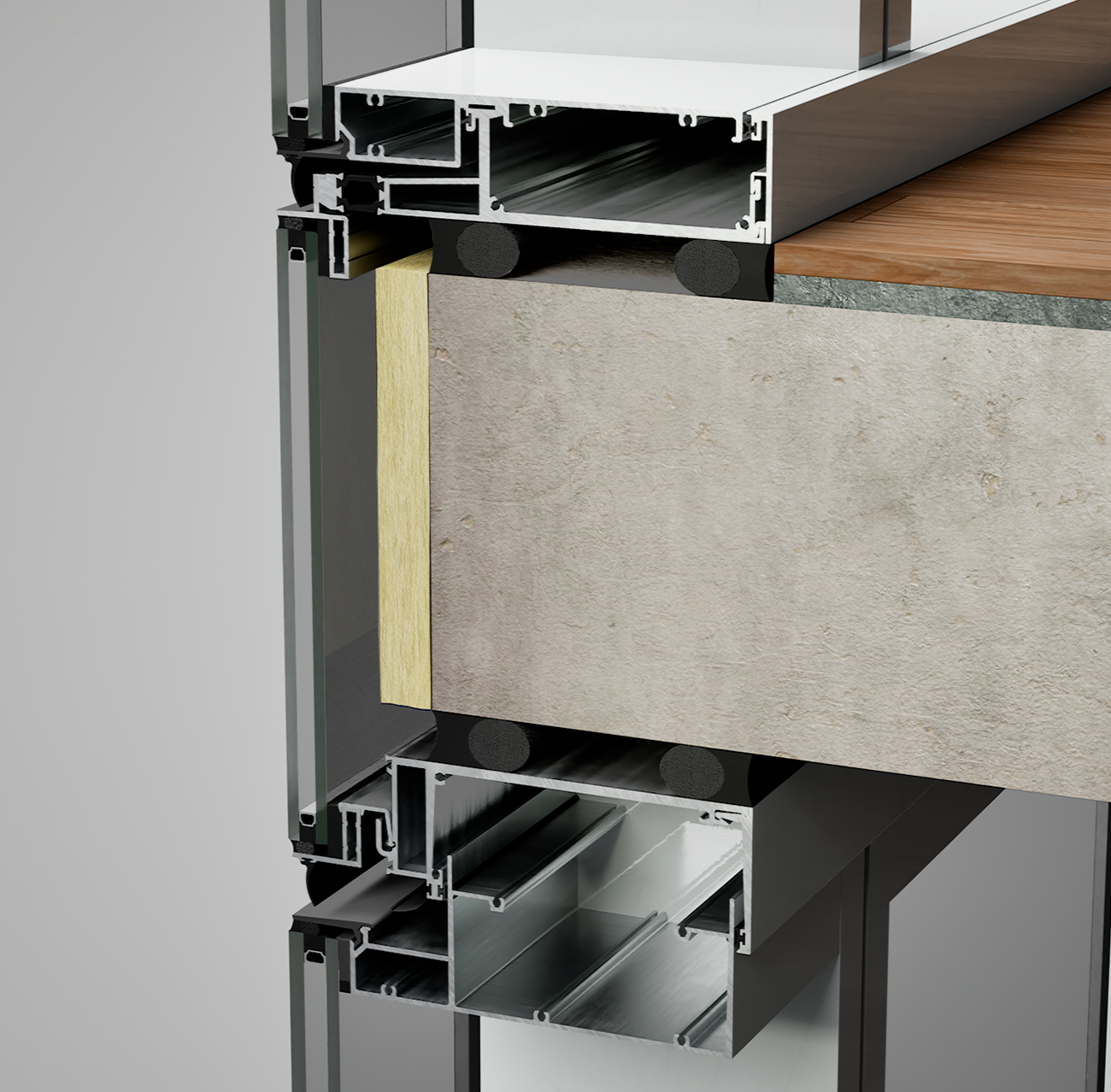

The RWW 12000-series is a 4-sided structurally glazed unitized window system, with a 7-5/8″ (194mm) structural mullion depth. Implements engineering principles matching other systems, with added structural capacity for taller height spans. Offers the ability to integrate/switch with other systems between floors while maintaining consistent exterior finished appearance. |
FRAME DEPTH: |
7-5/8" (194mm) structural frame depth |
FRAME SIGHTLINE: |
3" (76mm) |
BASELINE GLASS: |
Designed for 1" (24mm) insulating glass. Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance |
MAX. SIZE: |
60" x 174" |
DESIGN LOAD: |
+50/-50 psf |
WATER PERFORMANCE: |
15 psf |
U-VALUE: |
0,32 |
Northeastern IL University - NEIU |
1 S. Halsted |
448 N. LaSalle |
