9000 SERIES
|

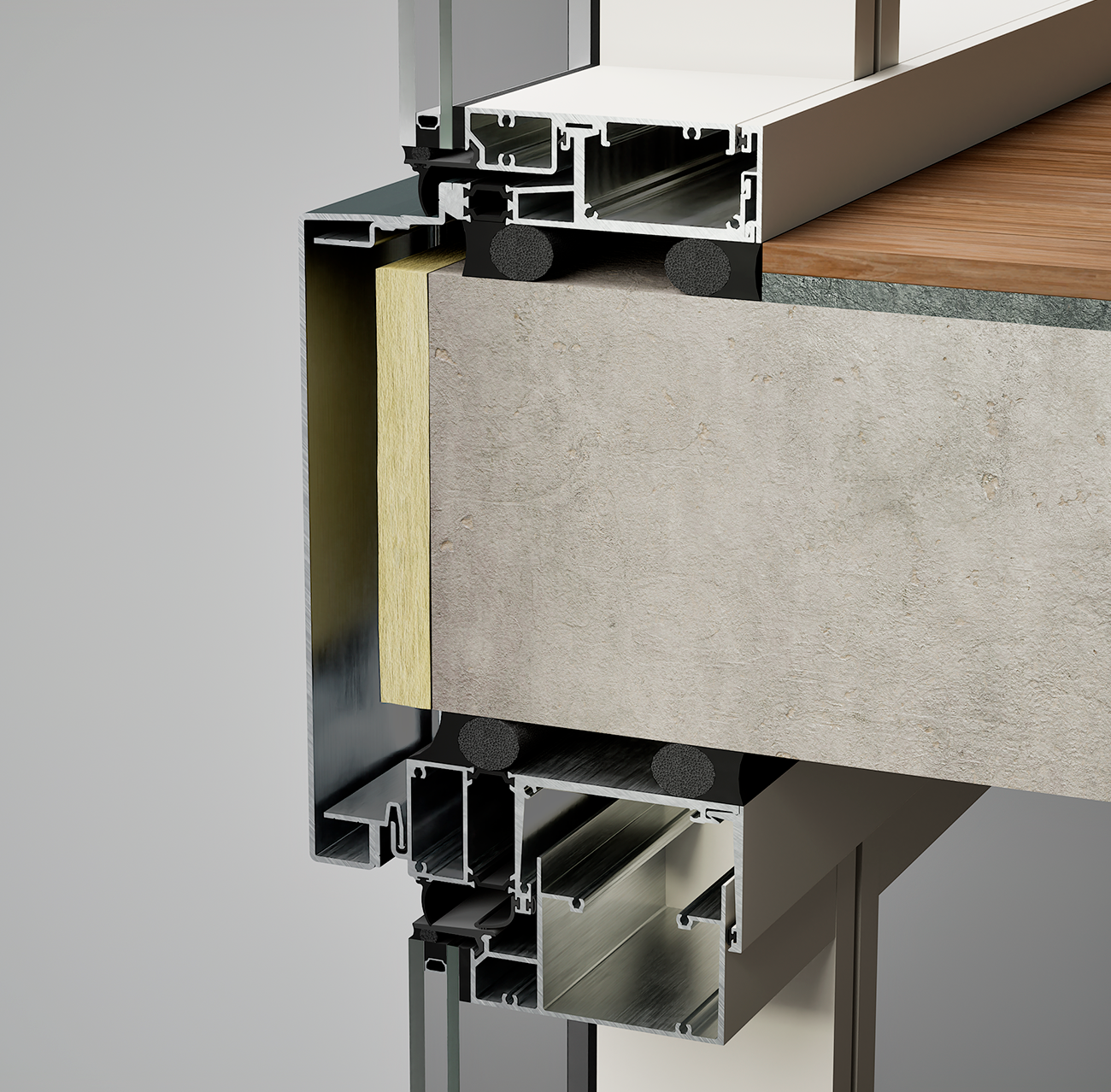

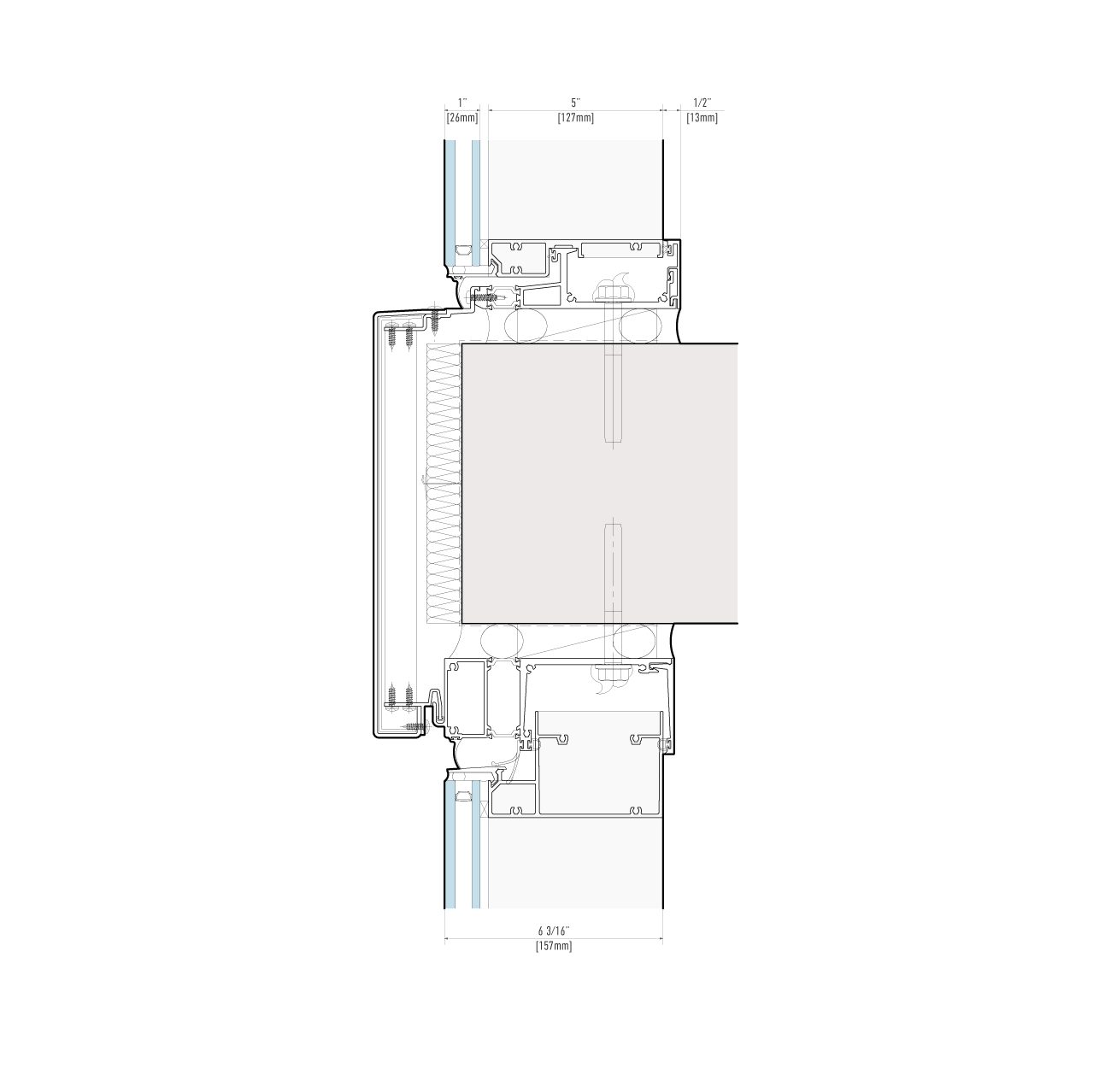

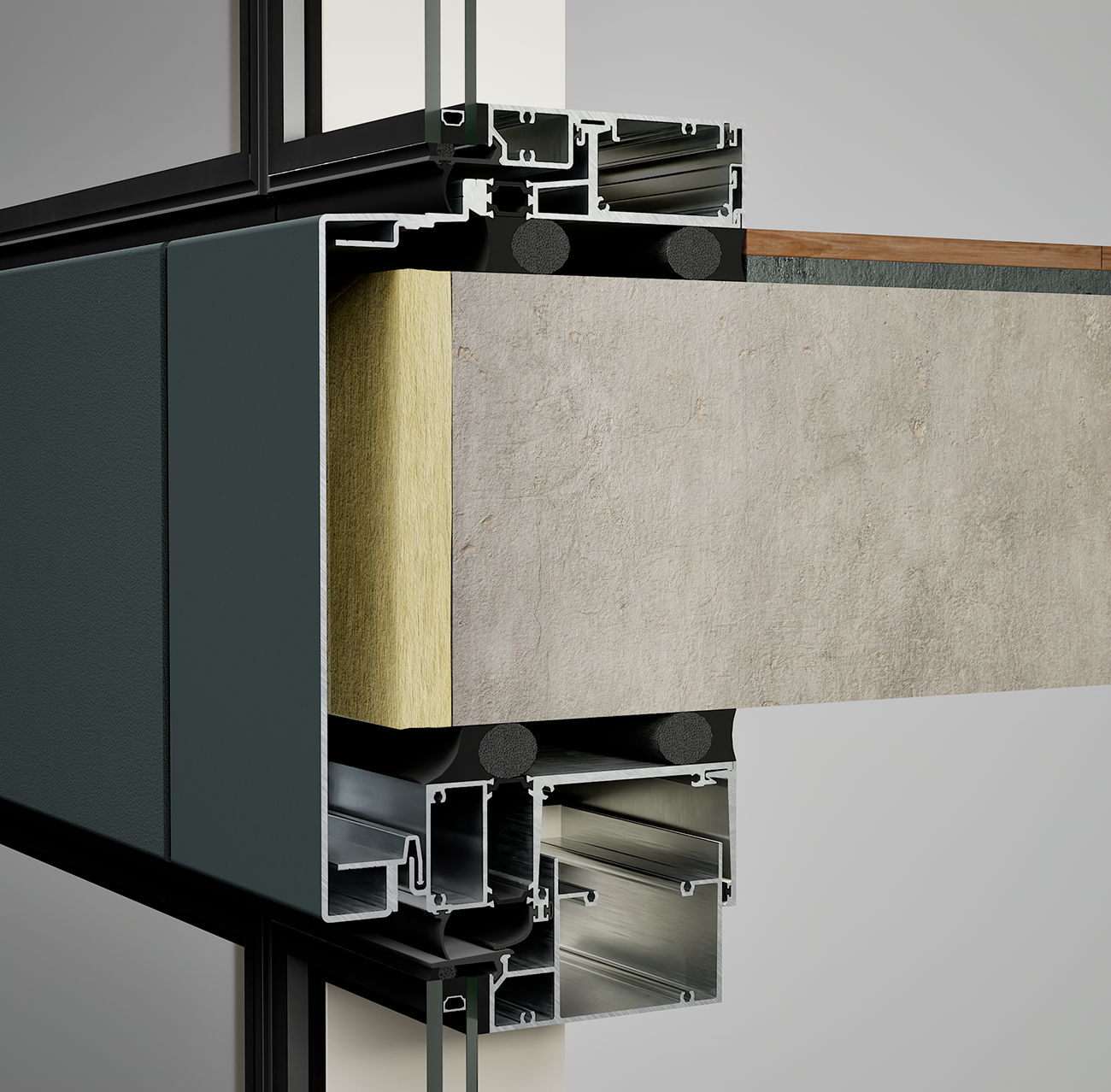

The RWW 9000-series is a 4-sided structurally glazed unitized window system, with a 5″ (127mm) structural mullion depth. This system migrates seamlessly from exterior facade to interior set balconies as a single system. Offers a large range of custom angled inside/outside corner conditions and segmented wall options. |
|
Operable Air Infiltration |
0.10 CFM/SQ.FT. @6.24 PSF |
|
Fixed Air Infiltration |
0.06 CFM/SQ.FT. @6.24 PSF |
|
Water Performance |
15 PSF |
|
CRF |
58 - 72 |
|
NFRC U-Factor |
0.20 - 0.45 BTU/hr·ft2·ºF |
|
Frame Depth |
5" (127mm) |
|
Frame Sightline |
2-1/2" (63.5mm) / 3" (76mm) |
|
STC |
31 - 45 |
|
Baseline Glass |
Designed for 1" (26mm) insulating glass. Can accommodate glass up to 2" (52mm) for enhanced acoustical performance |
|
9000 Series Brochure |
|
9000 Series Technical Details |
