9500 SERIES
|

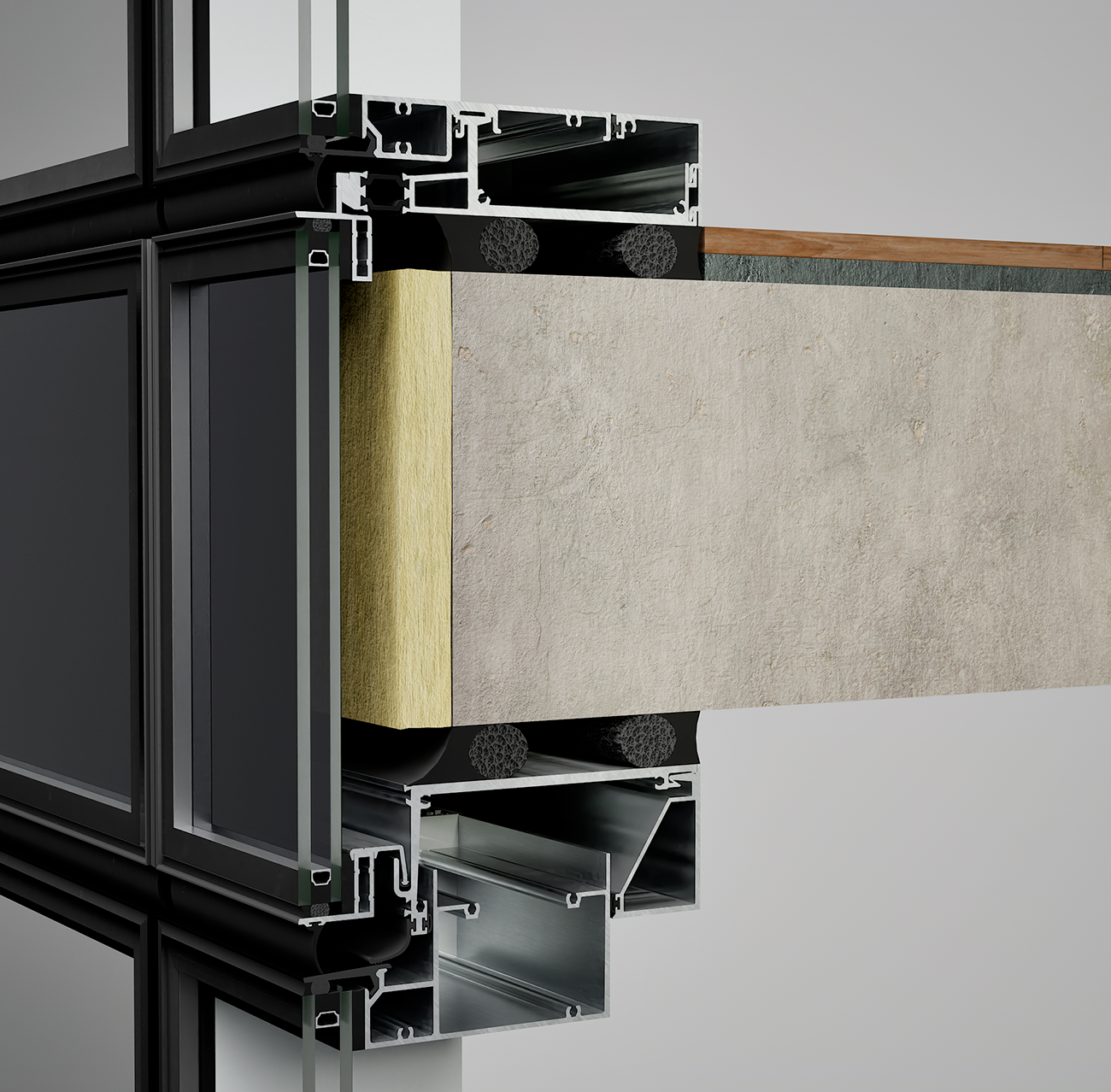

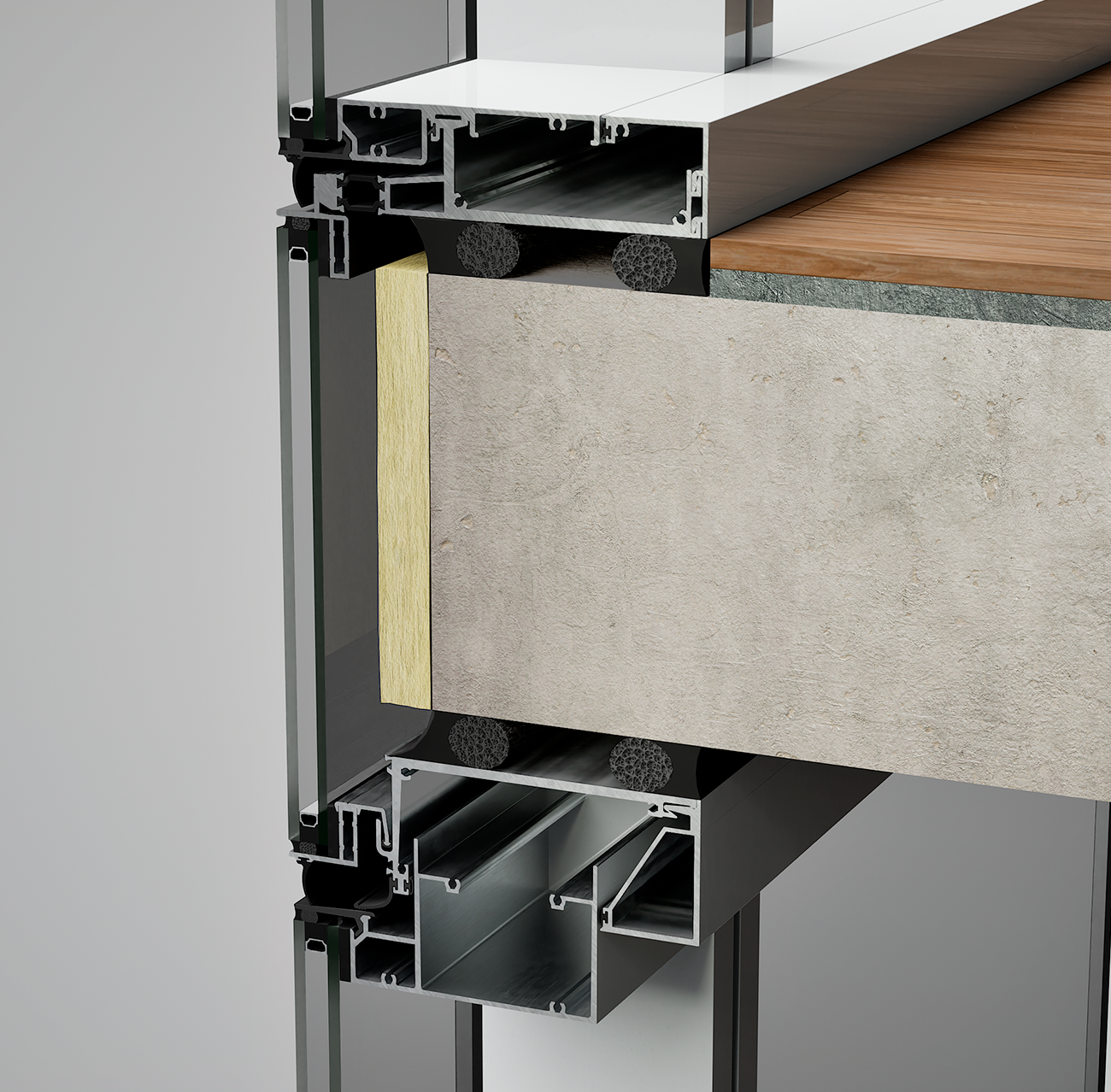

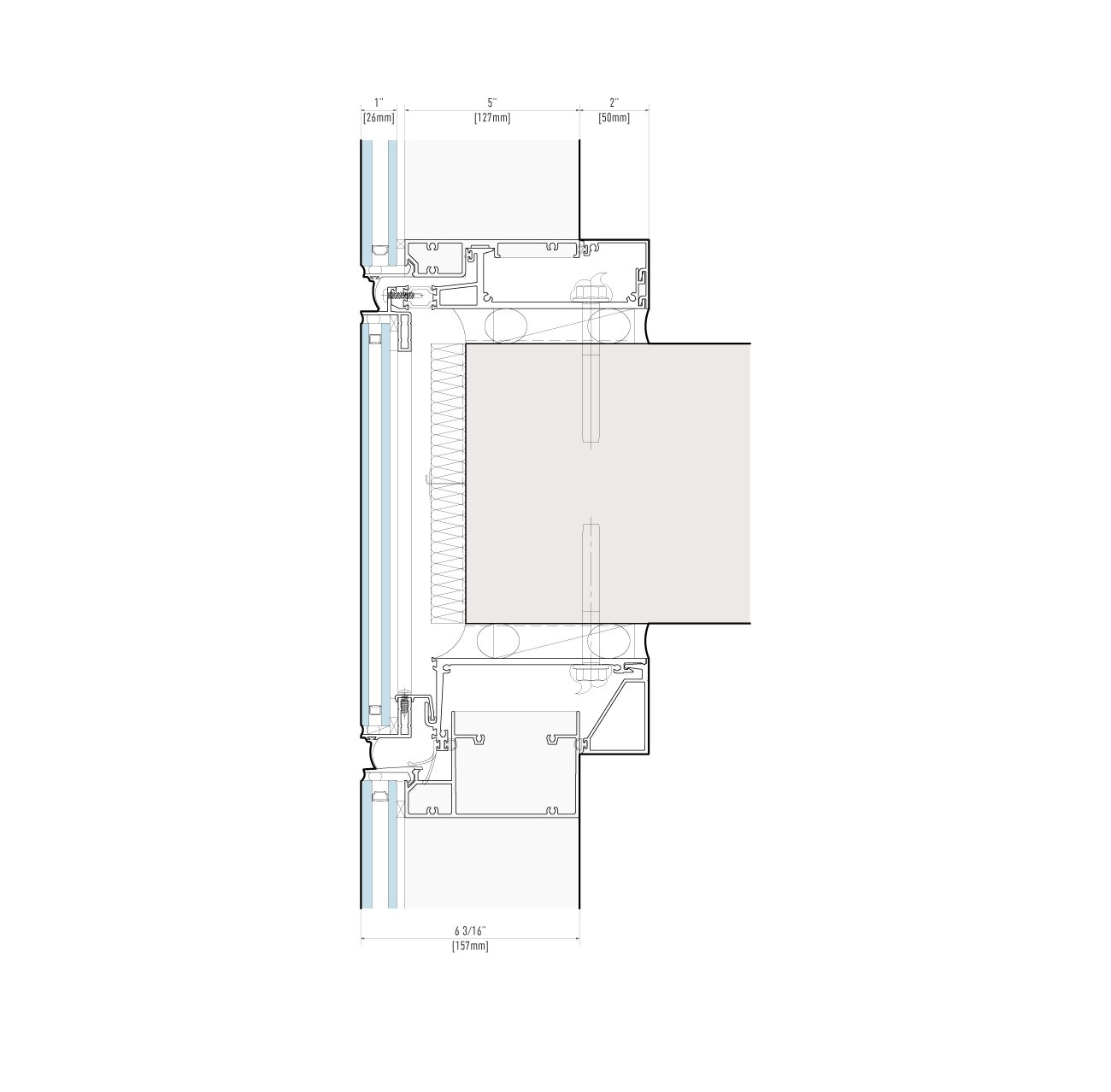

The RWW 9500-series is a 4-sided structurally glazed unitized window system, with a 5″ (127mm) structural mullion depth. This patented design (US #9,663,945) integrates a glass slab cover detail that gives this window system the appearance of a structurally glazed curtain wall facade. Offers a multitude of infill options for structurally glazed application, including but not limited to; insulated glass, metal, porcelain tile, and GFRC. |
|
Operable Air Infiltration |
0.10 CFM/SQ.FT. @6.24 PSF |
|
Fixed Air Infiltration |
0.06 CFM/SQ.FT. @6.24 PSF |
|
Water Performance |
15 PSF |
|
CRF |
58 - 72 |
|
NFRC U-Factor |
0.20 - 0.45 BTU/hr·ft2·ºF |
|
Frame Depth |
5" (127mm) |
|
Frame Sightline |
2-1/2" (63.5mm) / 3" (76mm) |
|
Spandrel OTIC |
32 - 38 |
|
Spandrel STC |
38 - 46 |
|
Vision STC |
31 - 54 |
|
Baseline Glass |
Designed for 1" (26mm) insulating glass. Can accommodate glass up to 2" (52mm) for enhanced acoustical performance |
|
