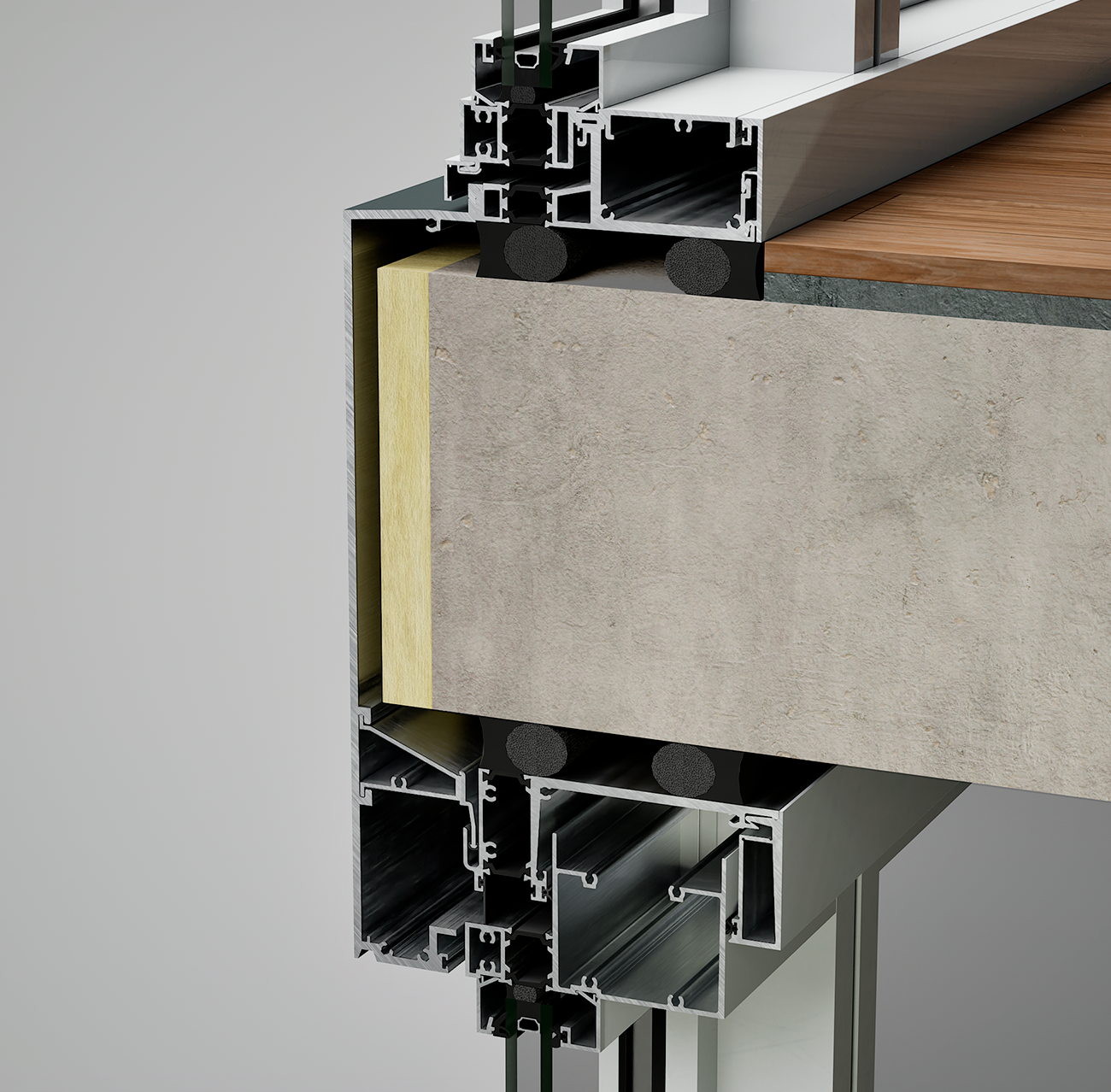

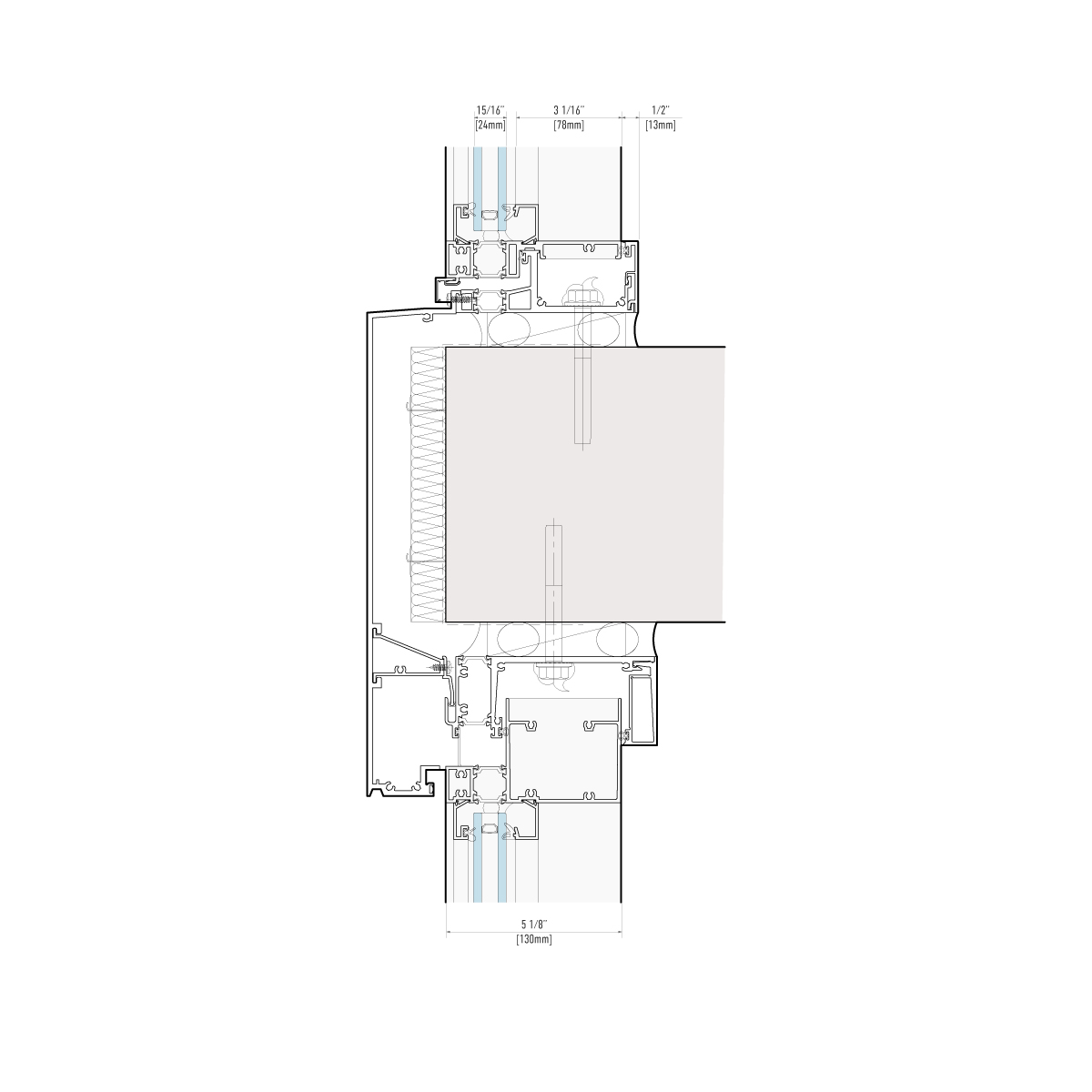

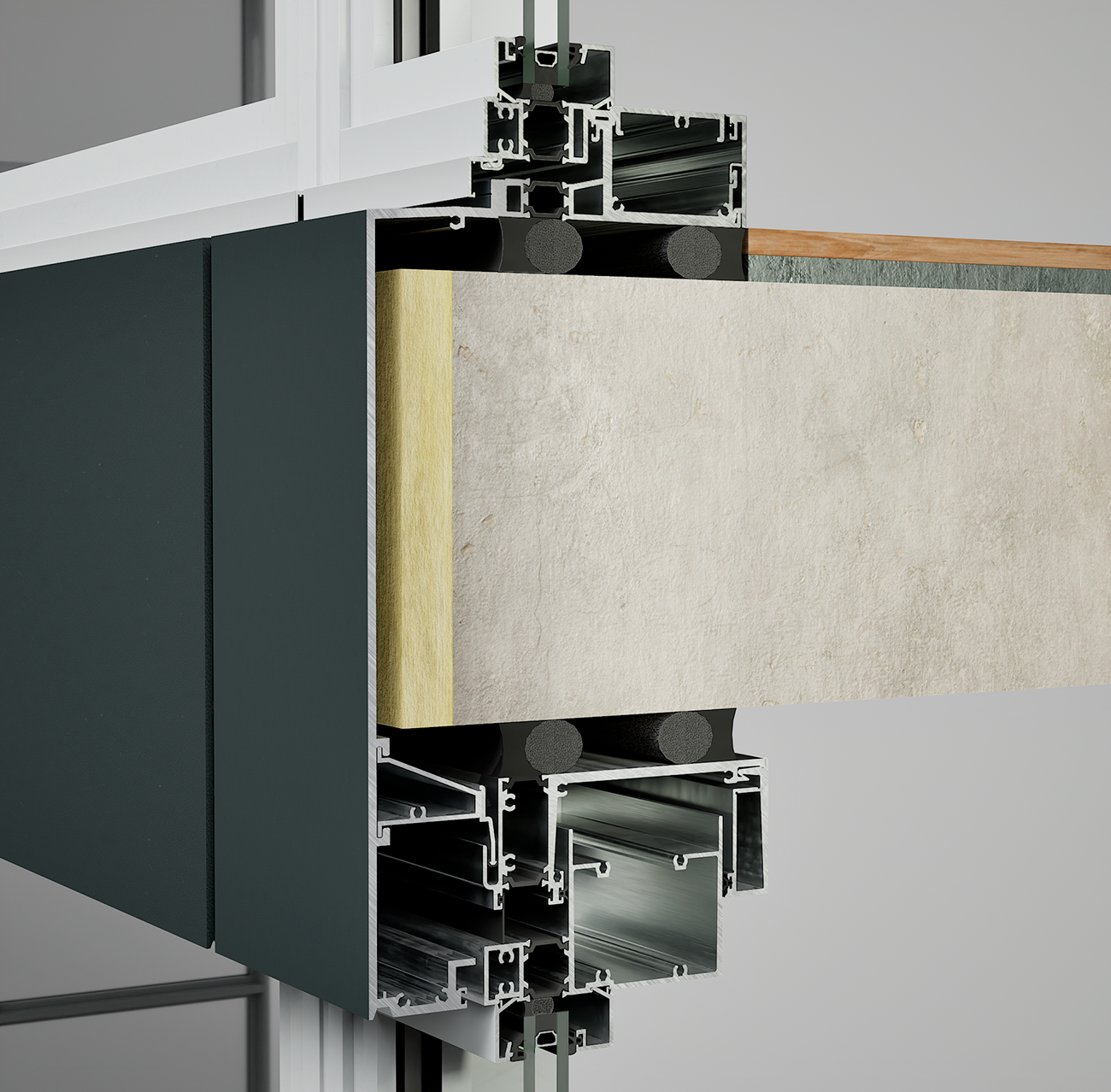

The RWW 7000-series is a 5-1/8″ (130mm) deep, unitized thermally broken, fully captured window system, allowing for depth articulation of the exterior expressed aluminum frame components.
This system features single sized polyamide struts throughout the system, starting at a baseline width of 0.945″ (24mm), for excellent thermal performance.
Strut size can be incrementally increased to enhance system performance. The strut system also allows for different finishes to be applied to exterior and interior component.
Designed for 1" (24mm) insulating glass, Can accommodate glass up to 1.77" (45mm) for enhanced acoustical performance
48" x 108"
